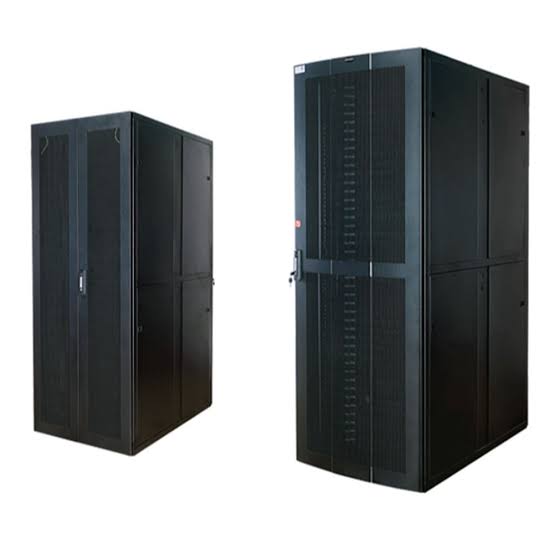

600mm × 800mm 22U Network Cabinet with Mesh Price in Kenya

The 600mm × 800mm 22U Network Cabinet with Mesh provides an organized enclosure for compatible networking equipment, structured cabling, and supported rack accessories. Its 22U capacity suits installations that need more space than a small wall cabinet without moving to a full-height 42U rack.

The mesh configuration allows air to pass through the perforated sections. This can support equipment cooling when the cabinet layout, room ventilation, and airflow direction are planned correctly.

Key Specification

The nominal dimensions do not establish the usable equipment depth, supported load, or included accessories.

Features and Practical Benefits

Space for an organized network: Arrange compatible switches, routers, patch panels, and cable managers in one accessible location.

Useful depth for networking equipment: The 800mm external depth provides more planning space than a shallower cabinet, although equipment must still be measured with its connectors and cable bends.

Ventilated enclosure: Mesh sections can reduce restrictions on airflow. They do not replace suitable room cooling or correct equipment placement.

Clearer maintenance access: A planned layout and labeled connections help technicians trace faults and replace equipment without disturbing unrelated cables.

Room for expansion: Reserve spare rack space for additional patching, switching, and cable management.

Compare the same 22U 600mm × 800mm mesh cabinet at Orbitlink Solutions. Orbitlink Solutions

How to Set It Up

1. Prepare an equipment list. Record each device’s rack height, depth, weight, power demand, and ventilation requirements.
2. Check cabinet compatibility. Confirm rail spacing, usable depth, load rating, and included fittings.
3. Choose the location. Allow space for door opening, maintenance, and room airflow.
4. Position and secure the cabinet. Follow the selected cabinet’s leveling and anchoring instructions.
5. Set the mounting rails. Leave clearance for front connectors, rear power plugs, and cable bends.
6. Install suitable supports. Use shelves or rails where equipment cannot be supported by front brackets alone.
7. Arrange power distribution. Select an appropriately rated PDU and provide grounding as required.
8. Route and label cables. Keep vents clear and maintain the bend radius of fiber and copper cables.
9. Test the completed installation. Check temperature, equipment access, door clearance, and electrical loading.

Advantages and Disadvantages

Advantages

• Practical capacity for a medium-sized network.
• Mesh supports ventilation.
• More depth than shallow cabinets.
• Helps organize equipment and cabling.

Disadvantages

• Mesh does not provide dust-tight protection.
• Load capacity and accessories require confirmation.
• External depth is not usable mounting depth.
• Equipment cooling still needs planning.

Troubleshooting and FAQs

Why does equipment remain hot inside a mesh cabinet?
Check room temperature, blocked vents, cable congestion, and opposing airflow between devices.

Can it hold a server or UPS?
Only when the equipment depth, weight, support rails, and airflow requirements match the cabinet.

Are fans and shelves included?
Confirm the actual supplied package.
