Fiber Patch cord 2M Single Mode SC/APC-SC/UPC Price in Kenya

Product details

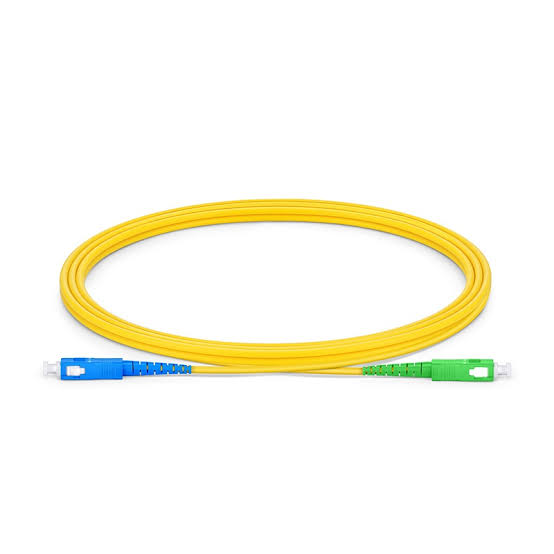

Fiber Patch Cord 2M Single Mode SC/APC–SC/UPC Price in Kenya

The 2M Single Mode SC/APC–SC/UPC Fiber Patch Cord connects compatible single-mode equipment where one connection requires SC/APC and the other requires SC/UPC. Its two-meter length suits short connections between optical outlets, termination panels, and nearby equipment.

This hybrid connector arrangement is useful when the two ends of an installation specify different polish types. Each connector must mate with its corresponding interface: APC with APC and UPC with UPC.

The cable provides a continuous optical path between those interfaces. It does not convert GPON to EPON, change optical wavelengths, or make incompatible equipment communicate.

Key Specification

A closely matching option is the single-mode SC/APC–SC/UPC patch cord. Check the selected length and supplied construction when comparing assemblies.

Features and Benefits

Connects different polish requirements correctly

A hybrid patch cord allows an APC interface at one end of the link and a UPC interface at the other. It avoids directly mating incompatible end faces.

Ready for equipment patching

Both ends are already connectorized, so normal installation does not require stripping or fusion splicing the cord.

Useful two-meter reach

The length is practical when equipment sits near the optical outlet. Measure the actual routing path, including cable-management space, rather than only the straight-line distance.

For projects using optical Ethernet equipment, browse the Netlink media-converter options at Reisen SEO, checking connector requirements before selecting a cord.

Recommended Applications

• Optical outlet-to-terminal connections with matching interfaces.
• Patch-panel connections.
• Replacement of damaged hybrid patch cords.
• Compatible single-mode test arrangements.
• Short optical connections inside organized equipment areas.

How to Install the Patch Cord

1. Identify both ports. Confirm that one requires SC/APC and the other SC/UPC.
2. Check the equipment pairing. The devices must also match the required fiber mode, optical standard, and network design.
3. Plan the cable route. Leave enough slack for servicing without tight coils, tension, or sharp bends.
4. Make the connection safe. Follow the equipment’s optical handling procedure and never look into an optical port.
5. Inspect and clean. Remove dust caps only when ready. Use appropriate connector inspection and cleaning tools.
6. Connect the correct ends. Align each SC connector and insert it using the housing. Do not twist it or pull on the cable.
7. Secure and test. Support the cable loosely and check optical levels or service operation. Record the connection where installation documentation is required.

Troubleshooting

Advantages and Disadvantages

Advantages: Convenient hybrid connection; no field termination during normal patching; useful for short equipment links.

Disadvantages: Must be installed in the correct orientation; two meters may not suit every route; does not resolve equipment incompatibility.

Frequently Asked Questions

Can the APC end plug into a UPC port?
No. Match the polish at each mating point.

Does this cord need electrical power?
No. It is a passive optical cable.

Can I cut it to make pigtails?
For planned splicing work, purchase correctly specified pigtails instead of modifying a finished patch cord.

Buy the SC/APC–SC/UPC Patch Cord in Kenya

Order through Reisen SEO, confirming the two-meter length, fiber grade, connector arrangement, and quantity required.
