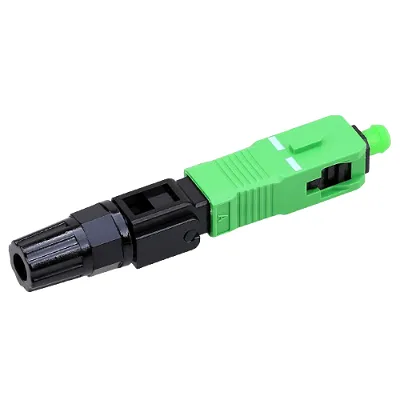

Fiber SC/UPC Fast Connector Price in Kenya

Product details

Fiber SC/UPC Fast Connector Price in Kenya

Terminate a suitable fiber drop with an SC/UPC fast connector when the project needs a field-fitted optical plug. This small component can help complete repairs and customer drops without installing a factory-terminated cable over the whole route. Correct preparation and optical testing remain essential.

SC identifies the connector family. UPC identifies the end-face polish, commonly blue. It must mate to a suitable UPC interface, not directly to a green APC end face. The exact insertion loss, return loss, fiber type, cable size, cleave length, and assembly method depend on the supplied connector. Do not apply one brand’s preparation dimensions to every fast connector. Order a sample and the matching instruction sheet before committing a large rollout.

Looking to purchase SC/UPC Fast Connector in Kenya? Confirm the current stock, exact package, and total quotation with Reisen. Choose the product for the real installation rather than the model name alone.

Choose the exact model, confirm the complete package, approve the quote, and arrange delivery.

Key Specifications

Compatibility

Use the exact supplied hardware or component specification for the final compatibility decision.

Compatibility depends on the complete connection, power, physical, and service design. Check the exact model at both ends before ordering.

The steps summarize the workflow; use the matching manual for exact dimensions and settings.

An SC/UPC repair example

For a damaged UPC termination, first confirm that the receiving port and adapter use the intended SC/UPC interface. Check whether there is enough undamaged cable for the connector’s preparation length and strain relief. Use the exact guide and a clean precision cleave, then measure the repaired path. A blue shell alone does not prove every dimension or performance value. If the job joins an APC-based part of a network to UPC equipment, use the correct transition lead at separate interfaces rather than directly mating the different faces. Store the finished connector in a protected outlet or enclosure with a controlled service loop.

Know which optical surface you are joining

A fast connector places a usable optical connection at the end of a compatible fiber cable. It is small, but it sits directly in the light path. The connector family, end-face polish, fiber type, and preparation method must all suit the installation. A connection that physically clicks into place can still have poor optical performance or the wrong mating surface.

SC describes the connector format. UPC and APC describe different end-face designs. Follow the specified polish at each mating point. Do not directly mate a UPC face with an APC face. When equipment at the 2 ends uses different interfaces, choose a correctly specified patch cord with the proper connector at each end. The adapter aligns the ferrules; it does not turn one polish into another.

Start with the relevant fiber-component listings at SC/UPC fast-connector listing and SC/APC fast-connector pack. Confirm the exact connector polish, cable support, model, or kit before choosing a replacement.

Choose the connector for the actual cable

Fast connectors are not all built for the same drop shape, round-cable diameter, coating, or fiber type. Ask for the supplied model’s cable compatibility and preparation dimensions. A body that grips one cable well may not restrain a thinner one. The optical joint and the cable grip perform different jobs, and both need to be correct.

Check whether the design uses a factory-polished stub, a mechanical splice mechanism, or another field assembly method. Use the matching jig or guide where specified. Do not copy a cleave length from another brand’s video. An installer should complete a sample and verify the result before preparing a large batch. This avoids repeating the same small preparation error across many customer drops.

Prepare a clean working area

Use a stable surface away from dust and wind. Keep capped connectors, cleaned fiber, and unprepared cable apart. Have the correct stripper, precision cleaver, approved cleaner, lint-free materials, and a closed fiber-shard container ready. Tiny glass fragments must not be left on a table, clothing, or the floor. Keep food and drinks away from fiber preparation.

Never look into a connector or fiber to check whether light is present. Verify the state of a circuit with suitable equipment and follow the operator’s safety process. A visible red fault locator is also a light source, not a safe viewing aid. Use inspection equipment designed for optical work, with appropriate live-fiber precautions. Protect prepared ends from touch and contamination.

For the preparation and patching stage, review Signal Fire AI9 kit listing and SC/APC patch cord. A splicer, mechanical connector, and factory patch cord solve different tasks and should not be treated as the same product.

Use an accurate cleave and controlled insertion

The cut end must be clean and suitable for the connector mechanism. A rough cleave, chipped surface, or debris can increase loss even when the assembly locks. Set the preparation length from the supplied instruction sheet and the correct guide. If the cleave is poor, prepare a fresh end rather than trying to push it harder into the connector.

Insert fiber according to the specified sequence and any indicated position or bend cue. Engage the locking mechanism only as directed. Follow the cable restraint method so normal handling does not pull the glass from the joint. Do not claim that every connector is reusable; the exact design determines whether it can be opened and re-terminated. Keep a few verified spares for field work.

For optical connection parts or a separate converter design, examine patch cords and pigtails and MC210CS optical Ethernet alternative. Match the wavelength, fiber, polish, and endpoint rather than relying on an SC connector name.

Protect the joint after termination

A successful termination needs an appropriate home. Use a suitable outlet, FAT box, ODF, or other protected location according to the network design. Maintain the cable’s bend radius and leave a controlled service loop. Do not let a heavy drop cable hang from the adapter or squeeze the connector behind a door. The cable grip and enclosure entry should carry the mechanical load.

Keep unused ends capped after proper cleaning. Dust caps are for protection, not proof that an end face is clean. Inspect and clean using the correct tools before final mating. Label the drop and port so later maintenance does not require pulling several fibers to find the right one. A low-cost connector can still cause expensive repeat visits if the final routing is careless.

Measure the result in the working link

A visible fault locator can help with continuity and certain faults. It does not establish low insertion loss or full service acceptance. Use the appropriate optical power or loss measurement for the job and record the result. An operator may also need OTDR testing for event location and acceptance. The chosen method depends on the network and agreed handover requirements.

If the finished link fails, check connector polish, cleanliness, fiber continuity, preparation dimensions, and the matching equipment. Do not immediately increase launch power or replace unrelated electronics. Compare against a known-good patch cord where safe. Keep test records with the drop label. The connector’s own advertised value is not a guarantee for a channel containing multiple joints, splitters, and unknown existing cable.

If a managed optical Ethernet network is required, compare CRS309 for a different optical Ethernet design and UniFi 16 XG optical aggregation option. Those switches require matching modules and patch leads. They are not direct PON-terminal replacements.

For the wider access layer, review fiber-capable switches and UniFi Standard 24 access-network option. Ethernet switch selection remains separate from fiber termination and provider registration. Check every interface in the complete path.

Quick Brand Comparison

Compare exact models and complete installation requirements. A brand family is a starting point, not evidence that every product has the same ports, power, software, or optical behavior.

Planning a wider connectivity project

This item does not connect directly to a Starlink terminal or replace its dish. It is a fiber preparation or access-network component, so its suitability is determined by the optical project. For a separate satellite broadband or site-connectivity requirement, review Starlink Kenya Installers and SpaceLink Internet Kenya. Keep the internet service design separate from this item’s actual function and confirm any supporting local-network equipment independently.

How to Set Up SC/UPC Fast Connector

A Step by Step Guide

1. Identify the exact connector and port

Confirm SC/UPC or SC/APC from the label and optical design, not color alone. Check the receiving adapter, fiber type, and supported cable dimensions. Obtain the matching instruction sheet and guide. If the equipment requires a different polish, choose the right transition patch cord instead of direct mismating.

2. Make the fiber work area safe

Follow the operator’s process for identifying and isolating the circuit where required. Keep optical sources out of view and never look into the fiber. Prepare clean tools and a closed shard container. Secure the cable so it cannot move during stripping and cleaving, and protect neighboring live fibers.

3. Strip and clean to the supplied dimensions

Use the exact strip lengths stated for the connector. Remove the coating without nicking the glass. Clean the prepared fiber with the approved materials. Avoid touching the cleaned section or laying it on the bench. If damaged or contaminated, prepare a fresh end before proceeding.

4. Cleave with the correct guide

Set the cleaver and connector guide to the specified length. Make a clean cleave and dispose of the glass offcut immediately. Inspect the result through an appropriate safe method. Do not apply the dimensions from another connector model or use a rough general-purpose cutter instead of a precision cleaver.

5. Insert and lock the fiber

Follow the model’s insertion sequence and any position indicators. Seat the fiber gently and engage the mechanical lock as instructed. Do not force the glass or bend it sharply. Fit the jacket restraint, boot, and other supplied parts so the cable’s mechanical load is not carried by bare fiber.

6. Clean and mate to the correct interface

Inspect and clean the end face using suitable equipment and live-fiber precautions. Connect only to the intended matching polish. Keep the cable supported as the SC connector latches. If it does not seat normally, stop and inspect the parts rather than applying extra force.

7. Test and record optical performance

Use the agreed optical power or loss measurement for the link. A red-light continuity check alone is not an acceptance result. If the measurement fails, check cleanliness and preparation before replacing unrelated network gear. Record the connector type, drop label, and measured outcome for later service.

8. Store and protect the finished connection

Place the termination in its intended box or frame. Maintain bend radius, strain relief, and controlled slack. Label the port and cap unused clean interfaces. Update the network record and keep the exact connector instructions with the installer’s field references so replacements follow the same validated process.

Advantages

·       Small field termination component for the specified optical interface.

·       Useful for supported drop and repair work.

·       Can avoid replacing a whole route when a suitable termination is the actual need.

Disadvantages and Limits

·       Preparation and cleave quality affect the result.

·       Wrong polish can create an unsuitable optical joint.

·       Optical testing and model-specific instructions remain necessary.

Frequently Asked Questions

Can UPC and APC connect directly?

No. They use different end-face designs. Use the correct mating interfaces or a properly specified patch cord with the required connector at each end.

Does this connector require a fusion splicer?

Many fast connectors use a mechanical field termination, but the exact supplied design decides the method. Confirm its instructions and required tools before purchase.

Will every drop cable fit?

No. Cable shape, diameter, coating, and fiber compatibility vary. Match the supplied connector specification to the actual cable.

Can I reuse it after a bad termination?

Only if the exact connector design permits re-termination and its parts remain suitable. Do not assume every fast connector can be opened and reused.

Does a red light prove a good link?

No. It can help with continuity and visible faults. Optical power or loss testing is needed for the agreed service acceptance.

Does the connector set internet speed?

It is a passive optical component. The complete optical budget, active equipment, network protocol, and service plan determine the usable connection.

Complete the Installation with Reisen

Build a clear parts list around Fiber Optic SC/APC Fast Connector and Signal Fire AI9 Fiber Fusion Splicing Machine. Choose each item for a defined role and confirm the links, power, and supplied accessories before combining them.

For another part of the installation, review Netlink Single-mode Media Converter and Netlink Gigabit Single-mode Media Converter. A shared brand does not prove compatibility. Read the actual interface and power requirements on both sides.

Keep the service and connection roles distinct when selecting Huawei EchoLife HG8546M Optical Network Terminal and MikroTik CRS326-24G-2S+RM 24-Port Gigabit Switch. These are complementary tools or network choices, not a promise that every item plugs directly into every other item.

The next stage of the project may need MikroTik CCR2004-1G-12S+2XS Cloud Core Router and MikroTik CRS317-1G-16S+RM 16-Port 10G SFP+ Switch. Ask for a quotation that marks each item as required, optional, or an alternative, so the complete package stays easy to review.

For the wider network, examine MikroTik CRS328-24P-4S+RM 24-Port Gigabit PoE+ Switch. Keep the main device, cable routes, and distribution equipment aligned with the planned service. Check each exact model before adding it to the order.

Choosing the right package in Kenya

If you are asking where to buy SC/UPC Fast Connector in Kenya, start with the exact model and the job it needs to do. Send Reisen the quantity, delivery location, and intended installation date. Include the equipment already in use and any important service requirement. A clear request helps distinguish a direct replacement from a new design that needs extra parts.

The cost of SC/UPC Fast Connector should be reviewed as part of the complete working package. Ask whether the quoted amount includes taxes, the required accessories, delivery, and any agreed technical work. Hardware, setup labor, and an ongoing provider subscription are different charges. Keep them itemized. This makes the order easier to approve and avoids comparing a bare unit with a fully prepared installation.

What’s in the Box

Confirm the quoted package.

·       SC/UPC fast connectors: confirm quantity

·       Boots: confirm inclusion

·       Dust caps: confirm inclusion

·       Cable guides: confirm inclusion

·       Assembly jig: confirm whether supplied

Fiber strippers, cleaner, cleaver, optical tester, adapters, and patch cords are separate unless specified.

Check the sealed package and item list when it arrives. Keep the invoice and model or batch information. Photograph visible shipping damage before discarding the packing materials, and contact Reisen promptly if an item is missing or differs from the order. A package seen in a video may be from another region or revision, so use the actual quotation as the reference for your delivery.

Warranty

Ask Reisen to confirm the current warranty period, coverage, exclusions, and claim process for SC/UPC Fast Connector in writing before payment. This description does not set a new warranty duration. Confirm who handles assessment, whether a local service route is available, and which supporting records are required. Keep the invoice and any serial or batch details with the product records.

If a fault appears, record the symptoms and any safe checks already performed. Do not open sealed equipment, modify power connections, or attempt an unauthorized repair while seeking a warranty decision. For installation-related concerns, keep the wiring, power, handling, and test records available. They can help separate a product fault from a problem elsewhere in the system without assuming the outcome of a claim.

Return Policy

Confirm Reisen’s current return window, eligibility rules, assessment process, and delivery-charge responsibilities before ordering. Ask specifically about opened, cut, assembled, registered, configured, or specially sourced items where relevant. Do not assume that every product can be returned after installation or that a refund is automatic. The applicable written policy and the circumstances of the order determine the process.

If the wrong item arrives, keep it protected and contact the team with the order reference before using or altering it. Retain packaging and accessories while the issue is reviewed. For a compatibility concern, share the exact connected-device labels and intended use. Getting those details checked before dispatch is usually simpler than arranging a return after the installation has begun.

Product Guides and Documents

Keep the exact product identification, matching technical sheet, supplied quick guide, packing list, quotation, and test record together. For SC/UPC Fast Connector, ask for documents that match the actual hardware or component revision. A similar product’s guide can help explain a general idea, but its power ratings, preparation dimensions, or software controls must not be copied without verification.

Where a technical value is essential to the project, have it written into the approved specification. This may include optical parameters, interface rates, supported power, physical fit, or material grade. If no exact manufacturer SKU is supplied, request that identification before accepting a fixed performance promise. Clear documentation helps with replacements, future expansion, and handing the system to another technician.

Installation Manuals

Use the installation manual for the delivered unit as the final reference for assembly, safe handling, power, mounting, and recovery. The step-by-step guide on this page explains a practical workflow, but it does not replace model-specific dimensions or safety instructions. Ask Reisen for the matching manual before an installer travels to the site, especially when a missing adapter, bracket, or tool could stop the work.

Keep the installed layout and any approved settings with the manual. Record changes after maintenance rather than leaving the original plan out of date. For a provider-controlled product, retain the operator’s instructions as well. For passive components, keep the preparation and test procedure. This gives the owner a useful record instead of relying on memory when another part needs replacement.
