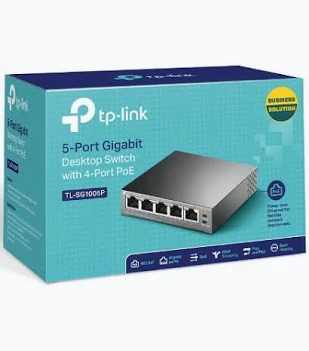

TPLINK TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE Price in Kenya

Product details

TP-Link TL-SG1005P 5-Port Gigabit PoE Switch Price in Kenya

The TP-Link TL-SG1005P combines Gigabit switching with power delivery for compatible devices. It is suitable for a small IP surveillance installation, several wireless access points, or a combination of supported PoE equipment.

Five Ethernet ports provide network connectivity, while ports 1–4 supply PoE on supported versions. The unmanaged design makes basic installation straightforward: connect power, connect the upstream network, and attach compatible devices.

Key Specification

These figures describe a current documented PoE+ version. Older hardware revisions can have different power capabilities, so confirm the supplied revision before purchase. TP-Link Philippines

Features and Benefits

Power and data through one cable: Compatible cameras and access points can receive both through their Ethernet connection.

Gigabit interfaces: Each port supports Gigabit negotiation with compatible equipment and cabling.

Simple operation: No switch controller or administrative interface is required for basic use.

Quiet installation: Fanless operation suits small offices, reception areas, and other occupied spaces.

Compact network expansion: One port can connect upstream while the remaining ports serve local devices.

Compare the same TL-SG1005P at Orbitlink Solutions. For managed alternatives, consider the UniFi Flex, checking its separate power-source and output-budget requirements.

Planning the PoE Budget

The per-port maximum does not mean every port can supply that amount simultaneously. Add the devices’ maximum power requirements and allow for cable losses and operating conditions.

This switch should not be assumed to power 24V passive-PoE-only equipment directly.

How to Set It Up

1. Check device requirements. Confirm each powered device’s PoE standard and maximum demand.
2. Calculate the total load. Keep the installation within the supplied version’s power budget.
3. Place the switch appropriately. Use a dry indoor location with ventilation.
4. Connect the supplied adapter.
5. Connect the upstream network. Port 5 is a convenient non-PoE uplink.
6. Connect powered devices to ports 1–4.
7. Check link and PoE indicators. Confirm that every device starts normally.
8. Test under load. Include nighttime camera operation or normal AP usage, then label the cables.

Advantages and Disadvantages

Advantages

• Gigabit connectivity.
• Four powered ports.
• Simple installation.
• Quiet, compact design.

Disadvantages

• No configurable VLAN management.
• Shared PoE budget.
• Limited expansion capacity.
• Power features differ between revisions.

Troubleshooting and FAQs

A device starts and then disconnects.
Check the total PoE load, cable quality, device requirements, and power supply.

Can ordinary non-PoE equipment connect?
Yes, appropriate standard equipment can use the Ethernet data connection.

Does the switch provide Wi-Fi?
No. Connect a suitable wireless access point.

Browse Reisen SEO’s network switches and Ethernet cables for installation accessories.

Order from Reisen SEO, confirming the required hardware revision and PoE budget.
