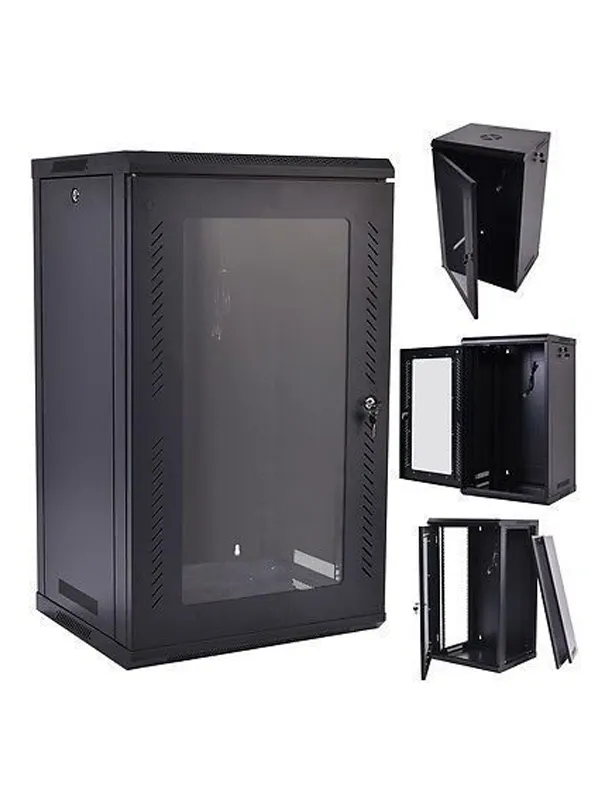

22U Data Cabinet Networking Rack 600mm × 600mm Price in Kenya

22U Data Cabinet Networking Rack 600mm × 600mm gives compatible network equipment a defined place to live. Its 22U format helps organize a planned mix of patching, switches, shelves, and power accessories. The nominal 600mm width and 600mm depth must be checked against the actual rail space and installed devices. Choose it from a measured equipment list and site plan.

Request the current 22U 600 × 600 quotation from Reisen. Ask for the complete package, delivery terms, taxes, warranty, and any installation work needed. A model-only price does not show the cost of the full working setup.

Choose the exact model, confirm the quote, then agree payment and fulfillment.

Key Specifications

A mid-height rack for an expanding installation

The 22U 600mm × 600mm format gives a substantial vertical step above small wall cabinets while remaining shorter than a 42U rack. It can suit a growing network that needs more patch panels, switches, and organized accessories. The 600mm external depth is important: this is not automatically a deep-server cabinet. Confirm the usable rail spacing and the support needs of each device. Ask whether the supplied model is floor standing and which feet, casters, doors, and side panels are included. If the project needs deep server rails, compare a suitable 800mm or 1000mm-deep alternative instead of choosing by U capacity alone. Save the complete layout so the spare space remains usable as the site grows.

Compatibility

Check the exact model and the full installation before connecting equipment.

Match every connection in the complete system. A shared connector, brand name, U height, or frequency label alone does not prove a suitable fit.

Nominal outer width and depth; confirm the supplied drawing and usable rail range.

Turn a group of devices into an organized system

A cabinet gives your network one clear home. Patch panels, switches, recording units, power accessories, and cable guides can share an orderly layout. This helps a technician find the right connection without moving loose gear around a desk. It also lets an owner see which parts belong to the system. The result depends on the layout inside. A large box with tangled cables is still hard to service.

Start with the devices you need today. Add the accessories that let them work safely. These may include shelves, mounting kits, cable managers, and a rated power distribution unit. Then leave space for a realistic next step. This avoids paying for empty capacity you will never use while still giving the network room to grow. Record the proposed layout before buying the cabinet.

Read rack height and enclosure size correctly

The U figure measures vertical mounting space. Each 1U equals 44.45mm. It does not state how many devices fit, how much weight the frame carries, or how tall the complete cabinet is. A 2U device takes twice the mounting height of a 1U device. A shelf can use rack space too. The roof, base, feet, and any casters add to the external height.

Width and depth describe a different part of the purchase. The nominal cabinet width is not the width between the mounting holes. Likewise, external depth is not usable device depth. Doors, rails, power plugs, and cable bends all take room. Compare the exact device drawing with the cabinet drawing. Ask for the rail adjustment range rather than relying on the word deep in a listing.

Compare the same nominal size first with 22U 600 × 600 cabinet format and 42U 600 × 1000 cabinet alternative. Read the complete dimensions and accessory list before treating cabinet formats as equivalent.

Check the complete device depth

Measure the chassis from front to rear. Add the space needed by power leads, Ethernet plugs, fiber connectors, and any cable management arm. Check whether the front handles or screen project forward. A device can sit between the rails yet prevent the door from closing. For a rack server, the approved rail kit may need a specific front-to-rear distance.

Do not force a plug against a door to gain a few millimeters. Pressure can damage the socket or lead to an unstable link. Fiber also needs a suitable bend radius. Leave enough service space for the installed equipment to be unplugged and removed. A small depth saving on the order can create a much larger cost during the first service visit.

Match the load to the frame and support method

A cabinet's load limit must come from its exact maker and model. The rating for one 42U rack cannot be applied to every other 42U rack. Add the weight of shelves, power gear, cables, and future devices. A shelf has its own limit as well. The usable load is constrained by every part that carries the equipment.

Heavy devices need the right support. Front mounting ears alone may not be enough for a long or heavy chassis. Use the maker's approved rails or a suitable rated shelf. Keep heavier items low where the installation plan permits. For wall cabinets, the wall, anchors, bracket, and cabinet all form the load path. A qualified installer should assess the wall before equipment is placed inside.

If the equipment list is changing, review 42U 800 × 1000 cabinet alternative and 42U 800 × 800 cabinet alternative. More rack height and more depth solve different space limits.

Plan cable routes before installing hardware

Separate incoming building cables from short patch leads. Bring each route into the cabinet through a suitable entry point and protect edges. Label both ends of important cables. A room name alone may not be enough when several outlets serve the same room. Use a simple numbering scheme that also appears on the patch panel and port schedule.

Leave a controlled service loop. Too little slack makes repairs hard; large coils can block airflow and hide connections. Use cable ties or hook-and-loop straps without crushing cable jackets. Keep power and data routes arranged to suit the installation rules. Fiber trays and copper patching have different handling needs. The cabinet creates the space, but thoughtful routing makes it useful.

Choose shelves and rails for each device

A desktop router or recorder may have no rack ears. It needs a shelf that fits the cabinet and supports its weight. Measure the device's feet, vents, and plugs before choosing that shelf. A shelf should not block cooling openings underneath the device. Small power adapters also need support so they do not hang from their cables.

Check the rail hole type and use the right cage nuts or fixings. Do not mix a thread into a hole it was not designed for. Position rails while the cabinet is empty where possible. Once equipment is loaded, moving the rails can require taking much of it out. Keep spare fixings in a labeled service bag so future work uses the same approved hardware.

For another enclosure layout, check 12U 600 × 600 cabinet alternative and 4U wall cabinet option. Keep load rating, mounting support, door access, and usable rail depth in the comparison.

Let the equipment breathe

Cooling starts with the devices and the room. Learn where each device takes in air and where it exhausts it. Avoid placing a hot exhaust directly against another device's intake. Cables, shelves, and blanking panels should support the planned airflow. Filling every visible gap is not always the right cooling plan.

Fans move air; they do not remove heat from a hot room on their own. Check whether the supplied cabinet includes fans, accepts an optional tray, or uses passive ventilation. A fan count in another product listing does not prove what comes with this cabinet. After installation, check temperatures during a normal busy period. A quiet room at startup can behave differently once all devices are working.

Arrange power as part of the rack plan

List each device's maximum electrical demand. Select the PDU, plugs, sockets, circuit, and any UPS as one system. The cabinet itself does not add power capacity. Nor does an unused socket prove that the circuit has spare capacity. Have the electrical work checked by a qualified person who knows the site.

Keep plugs accessible for service and label the supply path. If a device has 2 power supplies, decide whether it will use separate approved supplies or the same circuit. Two cords plugged into the same point do not provide full redundancy. Bond the cabinet and removable metal parts where the maker and electrical design require it. Never use an improvised cable as a substitute for the proper bonding method.

Select a practical location

Choose a dry, controlled indoor area unless the exact enclosure has a verified outdoor rating. Keep the cabinet away from water pipes, cleaning splash, direct rain, and excessive dust. Leave room to open the door and work at the side or rear where the design requires it. The route to the cabinet should stay clear after the room is furnished.

For a tall floor rack, check floor capacity, leveling, and the maker's anti-tip instructions. Do not rely on casters as proof that a loaded cabinet can be rolled safely. Static and moving loads are different. For a wall cabinet, check working height and safe access to the top entries. Good placement makes routine work easier for the next technician as well as the first installer.

The cabinet must also suit the devices it holds. Review 6U wall cabinet option and MikroTik CRS326 equipment option only as equipment choices, then measure their chassis, plugs, supports, and airflow against the rack drawing.

Prepare delivery and assembly

Measure doorways, stairs, corridors, and lifts before delivery. Use the packaged size when planning access. A cabinet that fits the final room may not pass through the route to it. Confirm whether the order arrives assembled or flat packed. Include handling and assembly in the quotation so responsibilities are clear.

Inspect the frame and panels before loading devices. Check squareness, door movement, rail alignment, and the supplied fixing set. Photograph damage while the packaging is still available. Follow the assembly order supplied with the actual cabinet. Do not assume that a similar model from another brand uses the same fixings, panel sequence, or anchoring method.

Build a layout that can be serviced

Put the patch panel near a sensible cable entry and leave room for patch leads to reach the switch. Keep screens and controls visible. Place a recorder where its drives and ports can be reached if the design allows. Leave enough space to remove the chosen device without taking out unrelated gear.

A short rack schedule saves time. Record each occupied U position, device name, power source, and linked port range. Keep a copy with the network records. Update it whenever something moves. If several people work on the system, one shared naming scheme helps prevent accidental disconnections. This is useful in offices, schools, hotels, shops, and small server rooms.

Plan for growth without overcrowding

Growth uses more than spare U positions. It can also need extra power, cooling, cable routes, and floor or wall load. Add the likely next switch or recorder to your plan, then check all those limits again. A cabinet can have free height while its shelves or electrical supply have already reached their limit.

Choose the size around a credible plan. A compact cabinet may suit a small branch with few devices. A larger floor rack makes sense when the equipment and service needs justify it. Leave expansion space where it can be reached. Space buried behind a fixed device or a tight cable bundle is much less useful than it looks in an empty-rack drawing.

A planned network can also use UniFi Standard 24 equipment option and TP-Link 16-port equipment option. The device listing does not prove cabinet fit; check each exact installation drawing before adding it to the layout.

Inspect the installation over time

Review locks, fasteners, hinges, cable entries, and visible bonding parts during planned service. Check that added cables have not blocked vents. Clean using a method suitable for the equipment and keep liquids away from powered parts. Changes in noise or temperature can point to a failed fan or a new airflow obstruction.

When adding equipment, revisit the whole layout instead of using the nearest empty opening. Record the new weight and electrical demand. Secure cables before closing panels. Keep keys with an agreed person and retain a service contact. These small habits help the cabinet remain useful long after the first installation day.

Quick Brand Comparison

Compare the complete role and installed cost. A different brand can require a different management platform, power source, mounting kit, or service. Keep an existing useful system in the comparison rather than replacing it solely to match a new product name.

How to Set Up 22U 600 × 600

1. List the equipment

Write down the exact device models, U heights, chassis depths, weights, plugs, and support kits. Include the shelf, PDU, patch panels, and cable managers. Add a modest planned expansion allowance. This list becomes the basis for the cabinet choice rather than a guess based on the biggest device.

2. Measure the site and delivery route

Check the wall or floor location, doorways, corridors, and lift or stair route. Use the packaged dimensions for delivery planning. Leave working space around the installed cabinet. For wall models, have the wall and anchor design assessed before drilling or placing any load on it.

3. Confirm the delivered configuration

Match the label and dimensions to the order. Inspect the frame, rails, panels, locks, and fixing set. Verify which shelves, fans, feet, casters, and power accessories are actually included. Report damage before installation. Keep the drawing and assembly instructions for this exact cabinet.

4. Secure the empty enclosure

Follow the maker's assembly and mounting order. Level and stabilize a floor rack, or mount a wall unit using the approved support design. Keep the enclosure empty during this step. Do not use equipment weight to settle an unstable frame or to test an uncertain wall fixing.

5. Set rails and power routes

Adjust the rail spacing to the planned equipment and its mounting kits. Check door and cable clearance. Arrange suitable power distribution and required bonding through a qualified installer. Keep electrical ratings, shelf loads, and frame loads within their separate limits. Label the power route clearly.

6. Load according to the layout

Use the approved shelves or rails and the correct fasteners. Install heavier items in the position allowed by the stability plan, usually low in a floor rack. Secure each item before the next. Do not support heavy chassis only by front ears unless their maker expressly permits it.

7. Route and label the cables

Fit patching and cable guides without blocking vents. Label both ends and maintain suitable bend radii. Leave enough slack for removal and service. Check that doors close without pressing on plugs. Record the port map and remove unused loose leads that would confuse future work.

8. Test and hand over

Run the installed devices under a normal useful load. Check temperatures, power, link status, door access, and service clearance. Keep the final rack schedule and keys with the agreed owner. Explain which future additions need another load, power, cooling, or depth check before they are fitted.

Advantages

·       Creates a clear place for compatible network equipment.

·       Supports a labeled rack and cable layout.

·       Offers defined U space for a planned installation.

·       Can make service work easier when access is preserved.

Disadvantages and Limits

·       Usable depth and load capacity need exact-model checks.

·       Shelves, fans, PDU and mounting parts may be separate.

·       Wall or floor support must suit the completed installation.

·       Extra equipment can exceed power or cooling limits before rack space runs out.

Troubleshooting

If a door presses on plugs, recheck rail position and cable clearance rather than forcing it shut. If equipment runs hot, inspect airflow, cable bundles, fans, and room cooling. Stop loading a cabinet that rocks or shows movement at wall fixings. A bent shelf or loose rail needs correction before more devices are added.

Frequently Asked Questions

Does the U number equal the number of devices?

No. It measures vertical mounting space. A device can occupy more than 1U, and shelves or cable managers also use space. Prepare a full layout that includes accessories. The load, depth, power, and cooling limits can be reached before all rack positions are filled.

Will every 19-inch device fit?

Not automatically. Rack width is only one check. The chassis depth, rail kit, connector space, weight, shelf support, and door clearance must also match. Ask for the cabinet's usable rail range and compare it with the exact equipment drawing before ordering.

Are fans and a PDU included?

Package contents depend on the supplied cabinet. Request an itemized quote showing fans, shelves, PDU, fixings, rails, and any feet or casters. Do not transfer the accessory list from another enclosure with the same U rating. Installed electrical parts have their own ratings.

Can it go outdoors?

Only if the exact cabinet is designed and rated for that environment. A normal indoor rack is not protected from rain simply because it has doors. Check the actual environmental rating, cable entries, ventilation, and installation method before choosing an exposed location.

Can I put a UPS inside?

Only when its dimensions, weight, support method, airflow, and electrical arrangement are all suitable. A heavy UPS may exceed a shelf or wall mounting limit even when there is enough rack space. Use its approved rails or a properly rated shelf and check the complete load.

How much spare space should I leave?

Base it on the next likely equipment and the cooling plan. There is no single percentage that suits every site. Add the proposed device, cables, power demand, and weight to the layout. Spare height is useful only if the other limits also allow the addition.

Can a loaded rack be moved on casters?

Do not assume so. Rolling and static load ratings can differ, and the floor route affects stability. Follow the cabinet maker's handling instructions. A tall loaded cabinet needs a controlled plan; feet, anchoring, and anti-tip provisions may also be required at its final position.

How do I get the price in Kenya?

Send Reisen the full dimensions, quantity, equipment list, and delivery location. Ask for the current complete quote, including the accessories and installation work you need. Confirm taxes, delivery charges, stock, and warranty terms before paying. Keep the agreed configuration on the order.

Why Shop with Reisen

Reisen brings network equipment and accessories into one catalogue, so you can plan the full job around the main product. Ask the team to check the exact model, package, and stock before payment. A clear parts list can reduce missed accessories and repeat orders. Keep the quotation tied to your real site rather than a generic product name.

Technical questions are easier to resolve when the order records the equipment already in use. Share the model labels, the intended role, and the result you need. Confirm current support, delivery, return, and warranty terms in writing. This gives you a useful purchase record and a clearer basis for help after the equipment arrives.

Complete the Setup with Reisen

For a nearby enclosure size, compare 12U 600 × 600 cabinet and 12U 600 × 450 cabinet. Keep usable rail depth in the comparison.

If depth or height is the limiting factor, review 9U 600 × 450 cabinet and 6U 600 × 450 cabinet. Check the full device and accessory list against each drawing.

For a wider change to the installation, explore 4U 600 × 450 cabinet and 42U 800 × 800 cabinet. These are different formats, so verify the mounting support and room footprint again.

Small devices such as RB260GS smart switch and RB260GSP passive-PoE switch may need a suitable shelf. Measure their power adapters and cable clearances as well as the switch bodies.

Browse the Reisen equipment shop for the rest of the planned parts. Keep a single bill of materials so the selected devices, accessories, and installation work can be checked together.

Use Reisen contact support to request the current package and stock details. Include the model, quantity, delivery area, and any existing equipment that must stay in the system.

Order the Right Package

Send the full model code and quantity with your location and target installation date. Include the parts you already own and ask which supplied accessories are still needed. Confirm the current price and stock, then agree payment and collection or delivery details. Keep the invoice, model labels, and final quote together.

Before booking installation, make sure the equipment and site are ready for the agreed work. Test the complete system at handover and save its layout or settings where relevant. A purchase is most useful when the selected product, supporting parts, and owner's needs fit the same clear plan.
