96 Core SC/UPC Optical Distribution Frame (ODF) Price in Kenya

96-Core SC/UPC Optical Distribution Frame ODF Price in Kenya

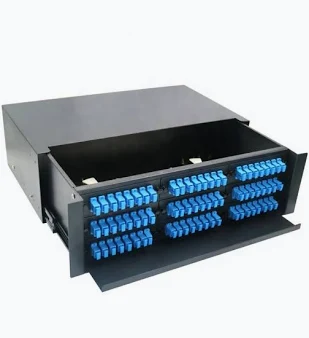

The 96-Core SC/UPC Optical Distribution Frame provides an organized termination and patching point for fiber installations. It suits network rooms, ISP facilities, office backbones, and other projects requiring structured management of multiple fiber cores.

An ODF helps technicians keep fiber terminations labeled, protected, and accessible. The exact enclosure arrangement, splice capacity, and supplied accessories depend on the selected product configuration.

Key Specification

96-core capacity does not automatically mean 96 duplex ports or that all adapters and pigtails are included. Confirm the loading schedule before ordering.

Features and Benefits

• Organized terminations: Keep backbone fibers mapped to clearly identified positions.
• Protected splices: House properly prepared splice work within suitable trays.
• Simpler maintenance: Access and identify individual connections without disturbing unrelated fibers.
• Structured expansion: Reserve and document capacity for future connections.

Explore our fiber-optic equipment and network cabinets when planning the installation.

How to Install It

1. Confirm the complete specification. Check enclosure dimensions, adapter positions, splice-tray capacity, and included accessories.
2. Prepare a core schedule. Map cable tubes, fiber colors, splice positions, and output labels.
3. Mount the enclosure securely. Check cabinet depth and access for maintenance.
4. Secure the incoming cable. Use the intended cable restraint and protect the fiber from tension.
5. Prepare and splice fibers. Use matching pigtails and appropriate fusion-splicing procedures.
6. Organize the trays. Maintain the cable manufacturer’s bend-radius requirements.
7. Install the adapters. Confirm SC/UPC interfaces throughout the intended connection.
8. Clean before connecting. Inspect and clean connector end faces.
9. Test every terminated core. Record continuity and appropriate optical-loss measurements.
10. Label and document. Attach the final core schedule and retain test results.

Advantages

• High-density fiber organization.
• Easier identification and maintenance.
• Protected termination space.
• Supports structured patching.

Disadvantages

• Requires skilled fiber preparation.
• Loaded accessories may be separate.
• Cabinet dimensions must match.
• Poor cable management can cause optical problems.

FAQs

Does it split the optical signal?
No. An ODF organizes terminations. A splitter performs a different function.

Can SC/APC connectors be directly mated to SC/UPC?
Use matching polish types at each connection; do not directly mate APC and UPC.

Is the unit supplied fully loaded?
Confirm the adapter, pigtail, and splice-tray quantities in the quotation.

Related Fiber Components

Explore ODF options at Tawa, patch cords and pigtails, and fiber installation materials at Orbitlink.

Request the 96-Core SC/UPC ODF from Reisen SEO with a clearly specified enclosure and loading arrangement.
