FAT Box 1X16 With SC/UPC Adapters & Pigtail Price in Kenya

FAT Box 1×16 with SC/UPC Adapters and Pigtails Price in Kenya

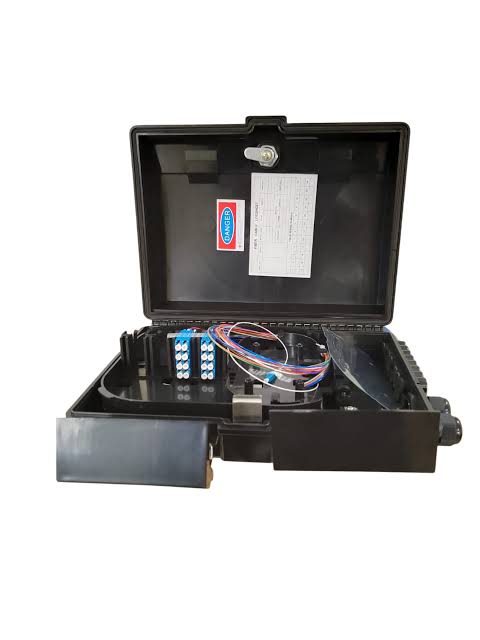

The FAT Box 1×16 with SC/UPC Adapters and Pigtails provides an organized termination point for a compatible fiber installation. The loaded arrangement reduces the number of separate components that must be sourced when preparing an SC/UPC distribution point.

The enclosure houses fiber routing and protected splices, while adapters provide the patching interface. Pigtails allow incoming fibers to be fusion-spliced to connectorized ends.

Key Specification

A 16-position terminal arrangement is not automatically a 1:16 splitter. Adapters and pigtails provide termination; optical splitting requires a separately specified splitter.

Features and Practical Benefits

Organized fiber termination: Keep connector interfaces and protected joints in one accessible enclosure.

Loaded configuration: Included adapters and pigtails can simplify component selection.

SC/UPC patching: Provides a defined connector interface for compatible patch cords.

Maintainable distribution point: Labels and tidy routing help technicians identify individual fibers.

Flexible network use: Suitable for termination within a correctly designed FTTH, building, or distribution network.

Compare the 16-position SC/UPC indoor distribution box at Tawa, checking the supplied contents and environmental rating. Tawa

How to Install It

1. Check the supplied components. Count adapters, pigtails, trays, and fastening parts.
2. Confirm fiber compatibility. Match fiber type, connector polish, and the network design.
3. Choose the mounting position. Use the enclosure only within its environmental rating.
4. Secure the incoming cable. Provide sheath retention and strain relief.
5. Prepare and splice fibers. Join incoming fibers to the appropriate pigtails.
6. Protect each splice. Seat protection sleeves correctly in the tray.
7. Route slack carefully. Maintain minimum bend radius and avoid lid pressure.
8. Label the interfaces. Record fiber and destination assignments.
9. Clean, inspect, and test. Verify optical performance before closing the enclosure.

Advantages and Disadvantages

Advantages

• Organized termination and patching.
• Included components reduce sourcing.
• Clear SC/UPC interface.
• Useful for maintaining fiber records.

Disadvantages

• Loaded contents require confirmation.
• Does not necessarily include a splitter.
• Installation needs skilled fiber handling.
• Outdoor suitability is model-dependent.

Troubleshooting and FAQs

Why is optical loss high after closing the lid?
Check for pinched fibers, tight bends, or incorrectly seated splice sleeves.

Can SC/APC patch cords be connected directly?
Use matching SC/UPC interfaces; do not directly mate different polish types.

Does the box divide one fiber into sixteen services?
Only if the required splitter is separately included and specified.
