Fiber Optic 24 Core ODF with SC/APC connector Price in Kenya
Out of stock
KES 4,000.00
Buy a 24-core SC/APC fiber ODF in Kenya at Reisen SEO for centralized optical termination, organized splice management, and business fiber installations.
View product detailsNeed help choosing?
Talk to our team at +254 714 804 532
Product details

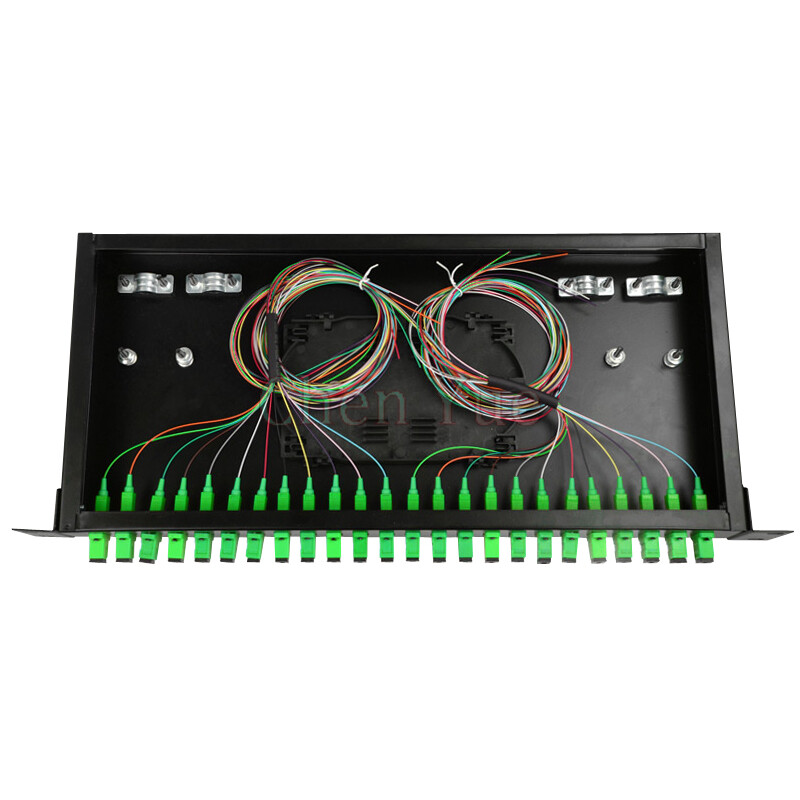

Fiber Optic 24-Core ODF with SC/APC Connector Price in Kenya
The 24-Core Fiber Optic ODF with SC/APC connections provides a central termination point for a planned 24-fiber installation. It suits projects that need more organized patching capacity than a small terminal box.
By bringing cable terminations into one managed assembly, the ODF helps technicians identify fibers, connect equipment, and maintain services without repeatedly handling the permanent cable.
Its nominal capacity must be considered alongside tray space, adapter layout, cable entries, and the supplied pigtails.
Key Specification
| Feature | Details |
|---|---|
| Product | Optical Distribution Frame |
| Intended capacity | 24 fiber terminations |
| Connection type | SC/APC |
| Mounting | Confirm the selected format |
| Pigtails and adapters | Confirm included quantities |
| Splice trays | Confirm number and capacity |
| Cable management | Internal routing and retention |
| Protection | According to the supplied enclosure |
Compare the matching 24-core SC/APC ODF when selecting the assembly.
Features and Benefits
Consolidates termination points
The ODF provides an organized location for a larger cable group or several smaller incoming cables, subject to entry capacity.
Supports planned expansion
Spare positions can be allocated in advance, provided the trays and cable management also support the intended growth.
Simplifies service identification
A clear port schedule helps reduce accidental disconnection during maintenance.
How to Install the 24-Core ODF
- Confirm mounting dimensions, cable entries, trays, and loaded components.
- Prepare the port schedule before stripping cable.
- Mount the enclosure securely and leave service access.
- Secure cables and strength members as instructed.
- Prepare fibers without transferring pulling loads into the tray.
- Splice the required pigtails and protect each joint.
- Arrange fibers so trays can move without strain.
- Clean and patch matching SC/APC interfaces.
- Test each fiber and label both ends.
- Retain the schedule and results for maintenance.
For equipment-room planning, browse network switches at Reisen SEO, matching optical modules and patch cords separately.
Applications
Suitable uses include office backbones, ISP termination points, building distribution, and communications-room patching.
Advantages and Disadvantages
Advantages: More termination capacity; centralized identification; easier patch-cord maintenance.
Disadvantages: Requires disciplined routing; occupies installation space; a fully populated panel can become difficult to service without good labeling.
Troubleshooting
| Problem | Check |
|---|---|
| Wrong service appears at a port | Fiber schedule and patching |
| Loss rises after tray movement | Service-loop routing |
| Several ports fail | Incoming cable damage or shared routing issue |
| One port fails | Connector, pigtail, and splice |
Frequently Asked Questions
Is it a network switch?
No. It is passive termination and management hardware.
Can it support future fibers?
Only within its documented tray, adapter, and cable-entry limits.
Buy 24-Core ODFs in Kenya
Contact Reisen SEO for the required SC/APC loading and mounting specification.
