Fiber Optic 48 Core ODF with SC/APC connector Price in Kenya

Product details

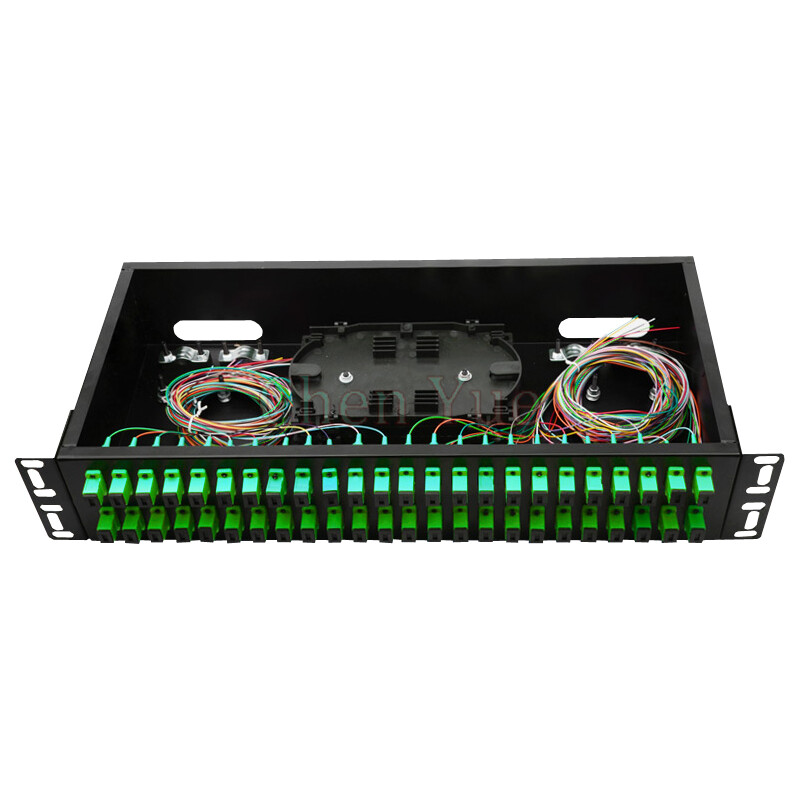

Fiber Optic 48-Core ODF with SC/APC Connector Price in Kenya

The 48-Core Fiber Optic ODF with SC/APC connections organizes a higher number of optical terminations within a managed assembly. It is suitable for installations where numerous fibers must remain identifiable and accessible for patching.

For contractors and network operators, the main benefit is structured fiber management. The ODF provides a defined location for permanent splices, connector presentation, and service records.

The complete assembly should be selected using physical access requirements as well as nominal fiber capacity.

Key Specification

A matching 48-core SC/APC ODF can be used for product comparison.

Features and Benefits

Centralizes larger termination groups

The assembly helps consolidate fibers that would otherwise be spread across several small boxes.

Supports repeatable maintenance

Consistent port numbering and cable records make fault tracing and service changes easier.

Separates splices from patching

Technicians can access front connections while leaving permanent joints protected.

How to Install the 48-Core ODF

1. Check the mounting format, service access, and complete loading specification.
2. Create a numbered fiber and port schedule.
3. Secure the assembly to its approved mounting system.
4. Anchor incoming cables before preparing individual fibers.
5. Allocate fibers to trays without crossing or crowding them unnecessarily.
6. Splice compatible pigtails and protect each joint.
7. Arrange service loops so tray access does not disturb adjacent fibers.
8. Inspect and clean the SC/APC connectors.
9. Patch, test, and label every completed circuit.
10. Confirm that covers and moving sections close freely.

Applications

Typical projects include larger building backbones, ISP distribution rooms, multi-cable termination locations, and organized fiber aggregation areas.

Advantages and Disadvantages

Advantages: Higher termination capacity; centralized service records; convenient patching access.

Disadvantages: Greater routing complexity; populated panels require careful access planning; incorrect labeling can affect multiple services.

Troubleshooting

Investigate connector contamination, tray crowding, wrong port allocation, and cable retention before replacing components.

Frequently Asked Questions

Does 48-core mean 48 services?
Not necessarily. Service count depends on the optical design and fibers required per connection.

Are all internal parts included?
Confirm the supplied adapter, pigtail, tray, and mounting quantities.

Buy 48-Core ODFs in Kenya

Request a suitably loaded assembly from Reisen SEO, including the required cable-entry and mounting details.
