Fiber Optical Time Domain Reflectometry OTDR ZS-1000A Price in Kenya

Fiber OTDR ZS-1000A Price in Kenya

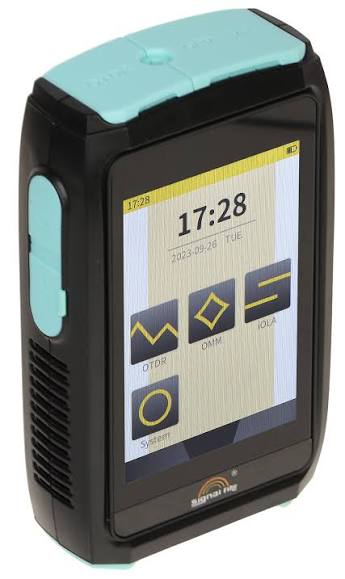

The ZS-1000A Optical Time Domain Reflectometer helps technicians investigate optical fiber links during installation and maintenance. OTDR testing produces a trace that can help locate cable ends, reflective connections, breaks, and other events along a fiber.

It is useful when a fault must be located along a route rather than simply confirming that optical power is present. Correct interpretation requires suitable test settings and an understanding of launch leads, dead zones, and event measurements.

Confirm the exact ZS-1000A version before purchase, including its wavelengths, connector interface, dynamic range, and supplied accessories.

Key Specification

Compare the matching ZS-1000A OTDR when selecting the test package.

Features and Benefits

Helps locate faults

An OTDR can estimate event locations along a fiber, supporting repair planning and reducing unnecessary cable inspection.

Supports installation records

Saved traces provide a useful baseline for comparison during later maintenance.

Complements other testing

OTDR analysis does not replace every measurement. An appropriate power meter, light source, and inspection equipment may also be required.

A separate Grandlink GLK270 optical power meter can be considered where its specifications match the work.

How to Set Up and Use the ZS-1000A

1. Check the model, optical port, wavelength options, and manual.
2. Charge the unit using the approved supply.
3. Confirm the fiber is safe to test. Do not connect to a live network unless the exact port and operating mode support it.
4. Inspect and clean the instrument port and test leads.
5. Connect a suitable launch fiber; use a receive fiber where the test requires far-end connection assessment.
6. Select the correct wavelength, range, refractive-index setting, pulse width, and averaging time.
7. Run an initial trace, then refine settings to resolve the events of interest.
8. Review the trace rather than accepting an automatic pass indication without inspection.
9. Save results using consistent cable and fiber identifiers.
10. Use the project’s required acceptance tests before handover.

Applications

The instrument suits fiber maintenance teams, installation contractors, ISP technicians, and organizations documenting optical infrastructure.

Advantages and Disadvantages

Advantages: Assists fault location; supports trace records; useful for troubleshooting distributed cable routes.

Disadvantages: Requires trained interpretation; dead zones affect closely spaced events; unsuitable settings can produce misleading results.

Troubleshooting

Frequently Asked Questions

Is its maximum range a guaranteed testing distance?
No. Usable performance depends on loss, settings, and the events being measured.

Can it replace a power meter?
Not for every acceptance procedure.

Buy the ZS-1000A in Kenya

Contact Reisen SEO to confirm the exact test specifications, accessories, and servicing arrangements.
