HIOSO HA7304 OLT EPON 4 Port + 4 SFP PX20++

KES 28000

Description

HIOSO HA7304 OLT EPON 4 Port + 4 SFP PX20++ The HIOSO HA7304 is a robust standalone Optical Line Terminal (OLT) designed to facilitate passive optical network (PON) installations. Featuring 4 SFP PON ports, this OLT supports up to 256 ONUs, making it ideal for deployment in counties, towns, and villages, as well as for […]

Buy Now

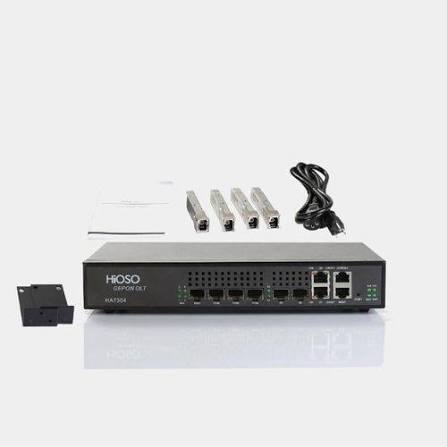

HIOSO HA7304 OLT EPON 4 Port + 4 SFP PX20++

The HIOSO HA7304 is a robust standalone Optical Line Terminal (OLT) designed to facilitate passive optical network (PON) installations. Featuring 4 SFP PON ports, this OLT supports up to 256 ONUs, making it ideal for deployment in counties, towns, and villages, as well as for FTTH, FTTB, and FTTO projects. It ensures high-performance IP phone, Ethernet data, and IPTV service access.

Key Features:

  • 4 SFP PON Ports: Supports 1:64 split ratio, providing connectivity for up to 256 ONUs.
  • Long Transmission Distance: Capable of reaching up to 20km under a 1:32 split ratio.
  • High Bandwidth: Supports symmetrical 1Gbps uplink and downlink.
  • Advanced Management: Features WEB management for easy configuration and monitoring.
  • Robust Design: 1U rack design with an internal fan for optimal heat dissipation and reliable operation.
  • Compliance: Meets China Telecom EPON standards.

Specifications:

  • Operating Wavelength: 1310nm (RX) / 1490nm (TX)
  • Optical Power: +2.5 ~ +7dBm
  • Receiving Sensitivity: -30dBm
  • Max Distance: 20km
  • Max Splitter Ratio: 1:64
  • Capacity: Supports up to 256 ONUs
  • MAC Capacity: 8k
  • Uplink Ports: 2 SFP ports + 2 1000M RJ45 ports
  • PON Ports: 4 SFP PON ports
  • Control Ports: 1 10/100/1000M RJ45 port, 1 RJ45 console port for debugging, 1 USB port
  • MTBF: 100,000 hours

EPON Traits:

  • IEEE802.3ah Compliance: Ensures compatibility with industry standards.
  • Dynamic Bandwidth Allocation (DBA): Minimum 1Kbps granularity adjustable.
  • Symmetrical Bandwidth: 1Gbps uplink and downlink for balanced data flow.
  • AES-128 Encryption: Provides secure communication for each Logical Link Identifier.
  • Powerful OAM Functions: Supports telnet management for comprehensive operation, maintenance, and upgrades.

Applications:

  • Rural and Urban Networks: Ideal for establishing fiber networks in towns, villages, and counties.
  • FTTH/FTTB/FTTO Projects: Suitable for fiber-to-the-home, building, and office installations.
  • IP Services: Facilitates IP phone, Ethernet data, and IPTV service access.
  • Surveillance: Provides reliable connectivity for surveillance systems.

The HIOSO HA7304 OLT EPON 4 Port + 4 SFP PX20++ is a high-capacity, reliable solution for expanding and managing passive optical networks, offering a blend of performance, scalability, and advanced management features. For further information or to discuss specific requirements, please contact us.
