HIOSO OLT HA7302CST 2PORT EPON Price in Kenya

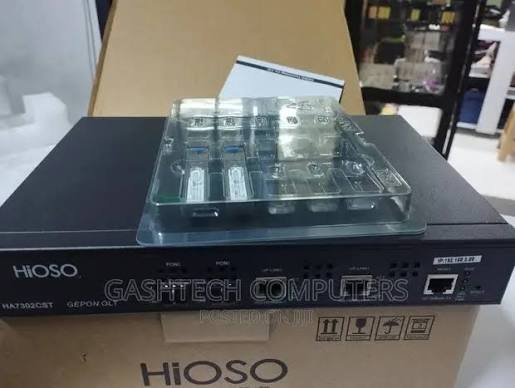

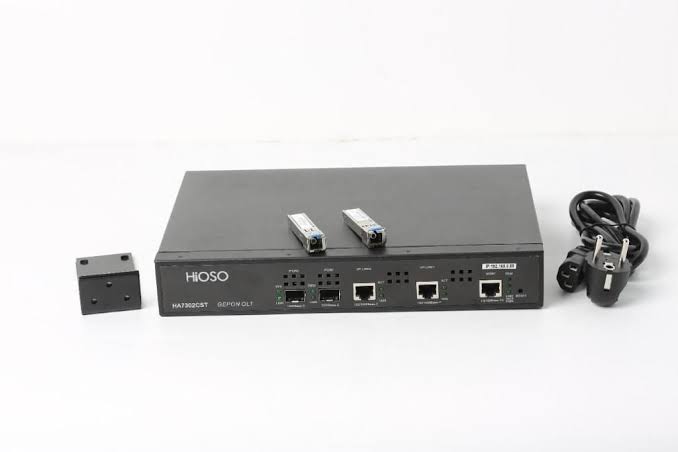

HIOSO OLT HA7302CST 2PORT Epon

The HIOSO HA7302CST 2PORT EPON OLT is a high-performance, standalone optical line terminal designed for establishing passive optic networks in conjunction with HA7200 series ONU and ODN. This advanced OLT supports 2-PON ports, allowing access to up to 64 ONUs, with a transmission distance of 10-20km, ensuring high bandwidth and full line speed L2/L3 transition capacity.

Key Features:

• Standalone 2-PON OLT: Supports 2-PON and up to 64 ONUs access.
• Long Transmission Distance: Capable of supporting transmission distances between 10-20km.
• High Bandwidth: Full line speed L2/L3 transition capacity.
• Advanced Management: Supports SNMP management for simplified network administration.

Specifications:

• Operating Wavelength: 1310nm (RX) / 1490nm (TX)
• Optical Power: +0 ~ +7dBm
• Receiving Sensitivity: -27dBm
• Max Distance: 20km
• Max Splitter Ratio: 1:32
• Capacity: 2 PON, standard 64 ONUs, maximum 128 ONUs
• MAC: 8K
• Uplink Port: 2 10/100/1000 Ethernet RJ45 ports / 2 Gigabit SFP ports optional
• PON Port: 2 SC fiber ports
• Control Port: RJ45 console port for device debugging
• MTBF: 100,000 hours

EPON Features:

• IEEE802.3ah Support: Ensures industry-standard compliance.
• Dynamic Bandwidth Allocation (DBA): Minimum 1Kbps granularity adjustable.
• Symmetrical Link Bandwidth: 1Gbps uplink and downlink.
• AES-128 Encryption: Provides secure communication for each Logical Link Identifier.
• Powerful OAM Functions: Enables telnet management, maintenance, and upgrade capabilities.
• Auto Discovery and Registration: Real-time operation for ONUs.

Protocols Supported:

• IEEE Standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.1Q VLAN, and IEEE802.1P QoS.
• Management: CLI and GUI, SNMP, WEB.
• Additional Features: DHCP Snooping, IPv4 address learning based on DHCP Snooping, ARP Snooping, QoS.

Benefits:

• High Efficiency: Supports up to 128 ONUs, providing scalability and flexibility for network expansion.
• Secure and Reliable: Advanced encryption and robust design ensure secure and reliable network performance.
• User-Friendly Management: Simplified network management through various interfaces and protocols.

The HIOSO HA730CST 2PORT EPON OLT is an ideal solution for small to medium-sized enterprises looking to establish a reliable and scalable passive optic network. For more information or to discuss your specific requirements, please contact us
