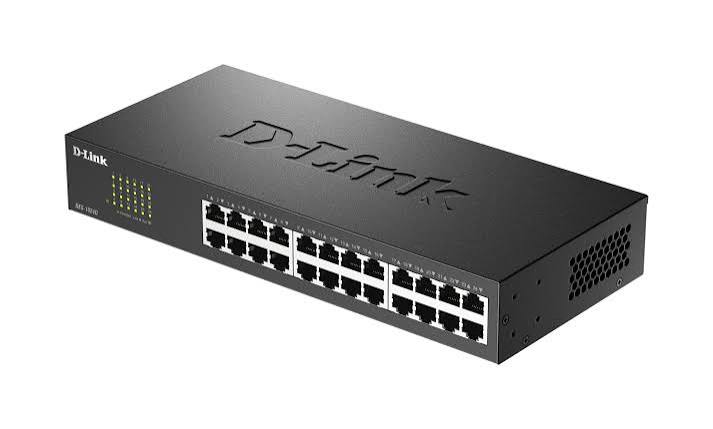

D-Link DES-1024D 24-Port Desktop Switch Price in Kenya

Product details

D-Link DES-1024D 24-Port Desktop Switch Price in Kenya

D-Link DES-1024D 24-Port Desktop Switch adds wired connections to a simple local network without a switch management setup. Its 10/100Mbps ports suit compatible light-duty equipment when a flat LAN is the intended design. It needs a working upstream gateway and good cable, while endpoint power remains a separate requirement.

Request a current DES-1024D quotation from Reisen. Confirm the exact item, quantity, supplied package, taxes, warranty, and delivery terms. Include the required supporting parts and installation work so the order covers the intended working setup.

Choose the exact item, confirm the full quote, then agree payment and fulfillment.

Key Specifications

24 copper ports with the limits of Fast Ethernet

The DES-1024D provides 24 unmanaged 10/100Mbps ports. In a simple layout using 1 of those ports as an uplink, 23 remain for local devices. Its larger port count can tidy a basic patching installation, but all those clients can still share the capacity of a single 100Mbps uplink. The 4.8Gbps switching fabric is not one port’s rate. It also does not imply a faster provider service or a managed traffic policy. Select it for compatible light workloads, and compare Gigabit alternatives where local storage, modern access points, or faster internet are central needs. There is no PoE output and no SFP cage. Check the delivered revision, power arrangement, and included rack hardware before installation. A desktop or rack position should preserve ventilation, cable support, and a readable uplink label.

Compatibility

Check fit, interfaces, power and the complete intended role.

Match the whole installation: intended role, physical fit, power, signal, software, and the equipment at the other end. Similar connectors or product names alone do not establish a working combination.

Example allocation using 1 uplink; other layouts use a different number of client ports.

Add wired ports without a switch configuration project

An unmanaged Fast Ethernet switch is a simple way to connect compatible wired devices on a local network. It learns where devices are attached and forwards their data without a web management setup. This suits a basic flat LAN where the owner wants more connections and does not need per-port policies or a managed VLAN design. It still relies on the correct upstream gateway and good cable.

Use it for a defined light-duty role. Printers, basic terminals, and older network devices may not need Gigabit rates for their normal work. Other devices can need much more bandwidth, especially storage systems and modern access points. Check the real task before choosing an older speed class. A low purchase price is useful only when the switch meets the service needed at the site.

Understand the 100Mbps per-port boundary

The DES Fast Ethernet interfaces in this batch negotiate up to 100Mbps per link. The larger switching fabric figure combines internal traffic capacity and is not the speed of one connection. Full-duplex operation allows simultaneous sending and receiving, but it does not turn a port into a 200Mbps single-direction interface. Keep those numbers separate when comparing products.

A high-speed internet subscription will still meet a 100Mbps limit on a client path through a 100Mbps port. A local Gigabit computer does not remove that limit. If the purpose is faster file copies, fast access-point uplinks, or large shared workloads, compare a suitable Gigabit switch. The switch should support the planned task rather than quietly becoming its narrowest link.

Start the product comparison with DES-1024D model listing and D-Link 16-port Fast Ethernet option. Compare the same Fast Ethernet role first, including port count and actual package.

Count the uplink inside the port plan

A connection to the gateway or another switch occupies one of the available RJ45 ports. Do not count every port as a spare client connection when the uplink is already included. A simple port schedule avoids this error. Mark the uplink first, then add the clients, printers, and any planned spare connection. Keep the cable labels consistent with the physical ports.

An unmanaged switch does not create a faster dedicated uplink by combining random cables. Two parallel connections can create a loop. Use a single planned path unless the wider network has an explicitly supported design for something else. If link aggregation or controlled redundant paths are required, choose appropriate managed hardware and configure the whole path deliberately.

Know which features require a different switch

There is no normal management page for building a VLAN policy on this unmanaged model. Do not buy it expecting the same port isolation, monitoring, or policy control found on a smart managed product. It can forward traffic in a suitable network, but the security design must not depend on settings it does not provide. Place sensitive or guest services through properly controlled equipment.

It also does not supply PoE power to endpoint devices. An IP camera or ceiling access point may need its own approved power supply or a correctly matched injector. Data compatibility and electrical power are separate checks. Do not connect an arbitrary passive power source to make up for the missing feature. A suitable PoE switch may be the clearer purchase when many endpoints need power.

For another system option, review TP-Link 16-port Fast Ethernet option and TP-Link 24-port Fast Ethernet option. An alternative of the same speed class still needs an uplink and a sound cable layout.

Keep installation simple and traceable

Use the supplied power arrangement and verify the delivered revision. Confirm whether rack brackets and fixings are included before booking installation. Desktop placement and rack placement both need ventilation and cable support. A metal case does not make the unit suitable for outdoor rain or an exposed cable route. Keep it in an environment appropriate to the exact guide.

Connect one uplink and a test client, then add the remaining leads in a controlled order. Check the client address and a normal task. If trouble begins after one new connection, inspect that route for a loop or faulty endpoint. A basic unmanaged switch can be easy to maintain when its topology is clear and every important cable has a useful label.

Plan the whole network before choosing the box

Start with a short map of the site. Mark the provider handoff, the gateway, the local switches, and the devices that need a wired or wireless connection. Give each part a clear job. This helps avoid buying a switch when the real need is a router, or buying another router when a few local ports would solve the problem. Keep the existing equipment labels in the plan so the new product can be checked against them.

Count the connections needed today and the likely next addition. Include uplinks and management connections rather than counting only user devices. A port used to connect another switch is already occupied. Leave a practical amount of spare capacity based on the site, not a fixed percentage copied from another installation. Growth may need more power, cooling, or management as well as more ports.

For a different layout, explore TP-Link 16-port Gigabit alternative and D-Link 24-port Gigabit alternative. A Gigabit option can suit faster local work, but match the full port and management requirements.

Match port rate to the traffic that will use it

The link rate is the speed negotiated between 2 interfaces. It is not the same as useful application speed or the internet package. Both ends and the cable must support the intended rate. A faster device can usually use a supported lower common speed, but that does not upgrade the slower interface. Check the actual product specification rather than the shape of the socket.

Think about local transfers as well as internet access. A computer copying files to local storage can use the LAN even when the provider connection is idle. Several users sharing an uplink may compete for that same path. Test the network with a realistic mix of work. A single short speed test cannot show how it will behave during a busy office session.

Keep the gateway and address services clear

A switch forwards local data, while a router connects different networks and applies the intended gateway policy. A network often needs both. The upstream equipment may already provide addressing and internet routing. Decide where those jobs belong before adding another device. Two unintended DHCP servers can make clients receive different gateways and create faults that appear to come and go.

Use non-overlapping subnets where routing separates networks. Keep the management address in a documented trusted range. If a device is used only for switching or access, do not enable a second gateway role by accident. Write down where clients get addresses and DNS. A simple clear plan makes later troubleshooting easier for someone who did not perform the original setup.

The complete parts plan may also include 16-port Fast Ethernet comparison and managed UniFi Standard 24 alternative. Data-only and powered managed switches fill different roles. Confirm the needed control and power before choosing.

Install sound cable and protect the connections

Use suitable cable and terminations for the desired data rate and route. Check both ends of each run. A damaged connector, poor termination, or unsuitable patch lead can reduce negotiation or create errors. Replace a suspect lead with a known-good one before changing a long list of software settings. Label important runs at both ends and match the labels to a port record.

Support cables so their weight does not pull on sockets. Leave controlled slack for service without filling vents with large coils. Keep copper and fiber handling requirements separate. A fiber connector needs suitable cleaning and bend control, while a copper run needs all required pairs and sound termination. The equipment can only work with the quality of the connections attached to it.

Choose a location that allows service and cooling

Keep indoor equipment dry and ventilated. Leave room to reach power, data ports, and any console interface. Do not pack adapters against a heatsink or place a warm exhaust directly against another device's intake. Check the airflow direction of the exact model. A cabinet needs a room-level heat plan as well as open space around the device.

Mount the unit with suitable support. A rack ear, shelf, or desktop position has to suit the actual case and weight. Measure connector clearance before closing cabinet doors. Keep a safe service route so one failed cable can be changed without pulling unrelated links. Small planning choices at installation can save a much larger disruption during a working day.

For the wider installation, review MikroTik managed copper switch. Keep the local switching job separate from the gateway and provider service.

Record a useful operating baseline

Test one client and one path at a time before connecting every device. Check the negotiated rate, address, local access, and provider access separately. Once the full system is working, repeat a normal busy task and note any errors or unexpected delays. Keep those results with the final settings. A saved healthy baseline helps explain later reports of slow access.

Use the record when troubleshooting. If one client fails, start with that client and its cable. If many clients fail, inspect the shared uplink, gateway, and power path. If local transfers work but the internet does not, test the provider side as a separate stage. Changing several unrelated settings at once makes it harder to learn which change fixed or caused the fault.

Price the installed result rather than an isolated item

The main product may need a supply, optics, cable, mounting parts, a cabinet shelf, or setup work. Include the useful supporting parts in the quotation. Check whether they are already available and compatible. This avoids paying for duplicates while also preventing the installer from reaching the site without a required part. A complete bill of materials is easier to check than several informal messages.

Confirm current stock, taxes, warranty, delivery, and the scope of technical help before payment. Keep the full model and any hardware revision on the order. Similar product names can hide different port layouts or power methods. Keep the invoice and final package list with the equipment record. That gives the owner a clear basis for support and future replacement.

Quick Brand Comparison

Compare the complete role and installed package. A change of brand or model can change the supporting parts, service, management, and setup work. Start with the task the site needs and keep useful existing equipment in the decision. A similar name is not enough to prove a matched replacement.

Can It Be Used with Starlink?

It can work within a suitable downstream Ethernet network supplied by Starlink, provided the hardware, capacity, and configuration match the job. Use the appropriate Starlink Ethernet handoff to the gateway and local LAN. This product does not replace the dish or connect directly to satellites. For the wider service and installation plan, see Starlink Kenya Installers. Keep proprietary dish-power connections separate from the local device’s approved power path. The internet plan and the local link rates remain separate limits.

How to Set Up DES-1024D

1. Check speed and port needs

Confirm the exact DES model and delivered revision. Count the gateway uplink as an occupied port. Check that 100Mbps links meet the actual workload. If the site needs VLAN controls, Gigabit rates, fiber, or PoE output, choose suitable hardware before installation rather than expecting those functions from this switch.

2. Inspect the supplied package

Check the case, power arrangement, leads, and any rack brackets. Compare the guide and label with the delivered unit. Confirm cabinet fit and support. Do not transfer a mounting or power detail from another hardware revision simply because the model name is similar.

3. Position and power the unit

Use a dry ventilated indoor location. Fit the approved rack parts or a suitable shelf where required. Keep ports and vents clear and support the cables. Connect only the approved supply arrangement. A desktop label does not make an exposed outdoor installation appropriate.

4. Connect a single uplink

Use one sound cable from the intended gateway or upstream switch. Do not create a second parallel path as an improvised speed upgrade. A loop can disrupt the whole flat LAN. Label the uplink so a future technician can identify the shared path without unplugging several cables.

5. Test one wired device

Connect a known-good client and confirm link activity, a correct address, and access to the intended gateway. Check a normal local task and provider access separately. There is no switch management address to configure on this unmanaged model, and no switch DHCP server to enable.

6. Add the remaining connections

Attach the labeled clients in a controlled order. Confirm their negotiated rates and normal work. Devices needing electrical power over Ethernet must use a separate approved arrangement; the switch supplies data only. Keep each added cable away from vents and preserve room for service.

7. Isolate any new fault

If the network fails after one cable is added, inspect that route for a loop, faulty endpoint, or damaged lead. For widespread problems, check the shared uplink and gateway. Avoid random reconnecting. Keep the simple topology intact while testing one suspected part at a time.

8. Record the working layout

Save a port list with client names, outlet labels, and the uplink. Record the power and hardware revision. Explain the 100Mbps and unmanaged limits to the owner. Recheck the layout when a new switch or access point is added so a later expansion does not create an accidental loop.

Advantages

·       Adds a useful group of compatible wired data ports.

·       Requires no switch login for basic forwarding.

·       Can suit a simple flat LAN with light traffic.

·       Offers a straightforward labeled installation.

Disadvantages and Limits

·       100Mbps ports can limit faster services and local transfers.

·       No PoE output or fiber uplink.

·       No normal configurable VLAN or managed port policy.

·       Unplanned parallel paths can create loops.

Troubleshooting

For one failing client, start with its lead, outlet, and negotiated rate. For many failing clients, inspect the shared uplink, gateway, and supply. If trouble starts after an added cable, check for an accidental loop. The unmanaged switch has no VLAN policy to repair through a login page. Keep the topology simple while testing a suspected route.

Frequently Asked Questions

Is this a Gigabit switch?

No. These DES models provide 10/100Mbps Fast Ethernet ports. A Gigabit client can use an appropriate common speed, but the switch does not become Gigabit. Compare a suitable faster model when local storage, modern access points, or a high-speed provider service require more bandwidth.

Does the switching fabric equal one port’s speed?

No. The fabric figure describes aggregate internal switching capacity under its stated conditions. One Fast Ethernet port remains a 100Mbps-class link. Full duplex permits sending and receiving at the same time; it does not double the one-direction port rate for a single transfer.

Do I need to log in for basic setup?

No. An unmanaged switch forwards local data without a normal management-page setup. It still needs correct power, cabling, one planned uplink, and a working gateway or address source. If the job needs configurable VLANs, port policies, or monitoring, choose suitable managed hardware.

Can it power an IP camera or access point?

No. It is a data-only switch with no PoE output. The endpoint needs its own approved supply or an explicitly matched injector. A device sharing an RJ45 connector does not prove that electrical power is available or that a passive source can be added safely.

Can I connect 2 uplinks to increase speed?

Do not add parallel cables as an improvised upgrade. A loop can disrupt the network. Link aggregation and controlled redundant designs need suitable supporting equipment and configuration. Use one planned uplink on this basic installation and choose a different platform if the job requires those managed functions.

Will all ports remain available for clients?

An uplink normally occupies one of the listed ports. Include the gateway connection, links to other switches, and any fixed devices in the schedule. Leave the remaining capacity for actual client needs. A port count without an uplink plan can make the selected switch too small.

Can it work in a cabinet?

Use a suitable rackmount kit or rated shelf for the actual supplied case and revision. Confirm the package rather than assuming brackets are present. Keep ventilation, power access, and cable support clear. The indoor switch is not made weatherproof simply by placing it inside an ordinary cabinet.

What should I include in a quotation request?

Give Reisen the exact model, number of connected devices, required speed, current gateway, mounting plan, and location. Ask about the delivered revision, power arrangement, rack parts, stock, warranty, and delivery. If PoE or management is needed, say so before selecting the data-only unmanaged model.
