Excelltel CS+424 Analog PABX System Price in Kenya

Excelltel CS+424 Analog PABX System Price in Kenya

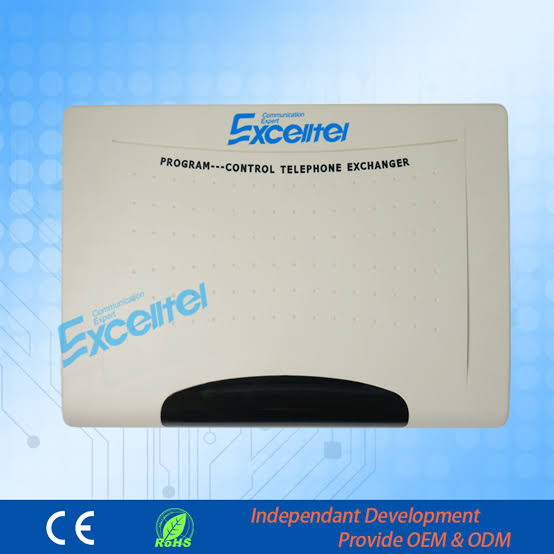

The Excelltel CS+424 Analog PABX System provides a shared telephone platform for offices and other premises using compatible analog extensions. Its four outside-line connections and 24 extension connections allow several departments or rooms to share external telephone services.

The system is useful for businesses that need internal calling and organized access to a smaller number of outside lines. It should be selected with compatible telephones, an appropriate provider handoff, and a clear extension plan.

Key Specification

Four CO lines describe the external line capacity. The 24 extension connections do not mean 24 simultaneous outside calls.

Features and Practical Benefits

Shared outside lines: Several extensions can use the available external services according to the programmed access rules.

Internal communication: Staff can call compatible extensions without placing an outside call.

Departmental organization: Assign extensions to reception, accounts, stores, management, and other work areas.

Analog handset compatibility: Suitable single-line analog phones can be used where their signaling requirements match the PABX.

Controlled installation: An extension and line-allocation plan helps make the system easier to use and maintain.

View the same CS+424 system at Tawa. Compatible handset selection can include products such as the Panasonic KX-T7705, subject to the required functions.

How to Set It Up

1. Plan the extensions. Assign users, rooms, and desired numbering.
2. Confirm outside-line compatibility. An IP service may require an appropriate analog gateway.
3. Choose a suitable installation location. Keep the unit dry, ventilated, and accessible.
4. Install telephone cabling. Label each extension run.
5. Connect CO lines to CO ports. Do not interchange outside-line and extension connections.
6. Connect compatible analog phones.
7. Secure programming access. Change default programming credentials where supported.
8. Program the required behavior. Configure line access, ringing groups, transfer behavior, and any supported schedules using the exact manual.
9. Test every extension. Check internal calls, incoming ringing, outgoing calls, transfers, and disconnect behavior.
10. Document the configuration.

Advantages and Disadvantages

Advantages

• Shared external telephone lines.
• Internal extension calling.
• Suitable for analog handsets.
• Useful for organized office communication.

Disadvantages

• External calling capacity is limited by available CO lines.
• Not automatically a SIP IP-PBX.
• Requires dedicated cabling and programming.
• Advanced functions depend on the exact system version.

Troubleshooting and FAQs

An extension can call internally but not outside.
Check line availability, access permissions, dialing rules, and the provider connection.

Can SIP phones connect directly?
Do not assume compatibility with analog extension ports.

Can a provider’s router telephone port be used?
Only when its analog output is compatible with the PABX CO input.
